Electric City Bike | City Ebike | Electric City Bicycle

This Electric City Bike is a versatile and efficient urban transportation solution that seamlessly combines the convenience of cycling with the power of electric assistance. With its impressive features and specifications, it's designed to make your daily commute a breeze.
Equipped with a 7-speed gear system, this electric city bicycle offers a wide range of options to tackle various terrains and riding conditions.
Hub Form: It features a spoke wheel hub design, enhancing stability and durability while reducing weight.
Maximum Load: With a maximum load capacity of 120kg (265 lbs), this city ebike can accommodate riders of different sizes and carry some additional cargo.
Maximum Speed: In compliance with regulations, it reaches a maximum speed of 25km/h (15.50mph) in the EU and 32km/h (20mph) in the US.
Mileage: You can enjoy a range of up to 35 km (21.9 miles) in electric mode, making it ideal for short to medium commutes.
Maximum Climbing Angle: Conquer inclines with ease, thanks to its 25-degree maximum climbing angle.
Proper Temperature: Designed to operate in temperatures ranging from -10°C to 45°C (14°F to 113°F).
Waterproof Level: Rated at IP54, this ebike can withstand light rain and splashes, ensuring you can ride in various weather conditions.
Range: The Electric City Bike boasts an impressive electric mode range of approximately 28.2 miles and approximately 65 miles in pedal assist mode, giving you flexibility in how you choose to ride.
Battery Type: Powered by a reliable 18650 lithium-ion power battery with a capacity of 15Ah and a rated voltage of 48V.
Motor Form: The assist mode motor is a 26-inch high-speed gear-driven, spoke wheel brushless motor, providing efficient and smooth acceleration.
Charging Time: Recharge the battery in just 7.5-8 hours, so you're ready to go in no time.
Instrument Display: Stay informed with the multifunctional LCD screen, which provides essential data about your ride.
Tire Specifications: Equipped with 26×3.0 tires, the bike offers a comfortable and stable riding experience.
Front Fork: The shock-absorbing front fork ensures a smoother ride, reducing the impact of bumps and uneven surfaces.

Outlook&Dimension

Name	Specification
Parameter:	Standard Version
Body Material:	Iron
Color:	Black
Unfolding Size:	1870mm*630mm*1100mm
Hub Form:	Spoke wheel
Wheel Size:	26 inches
Package Size:	1560mm*240mm*840mm

Performance Parameters

Name	Specification
Gross/Net:	34.4kg/26.8kg(75.84lbs/59.08lbs)
Maximum Load:	120kg(265 lbs)
Maximum Speed:	25km/h(15.50mph)in EU, 32km/h(20mph)in US
Mileage:	≦35 Km(21.9mile)in electric mode
Maximum Climbing Angle:	25 degree
Proper Temperature:	-10°C-45 °C (14T-113T)
Waterproof Level:	IP54
Range:	=28.2mTTiles(electric mode) ≈65miles(pedal assist model)

Electrical Specifications

Name	Specification
Battery Type:	18650 lithium ion power battery
Battery Capacity:	15Ah
Battery Rated Voltage:	48V
Motor Form:	Assist mode
Motor Type:	26 inches / High-speed gear / Spoke wheel brush-less motor
Motor Rated No-Load Speed:	390±10r/min
Charger Output:	54.6V 2.0A
Charger Input:	100~240V 50/60Hz 3.0A
Undervoltage Protection Value:	39V
Overcurrent Protection Value:	15A±1A
Charging Time:	7.5-8 hours

Features

Name	Specification

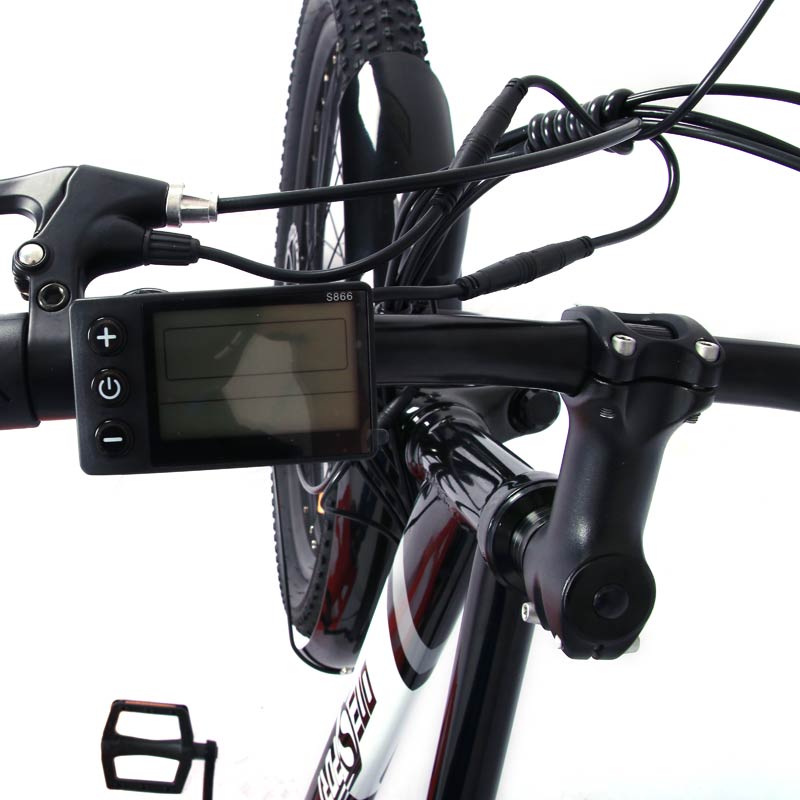

Instrument Display:	Multifunctional LCD screen

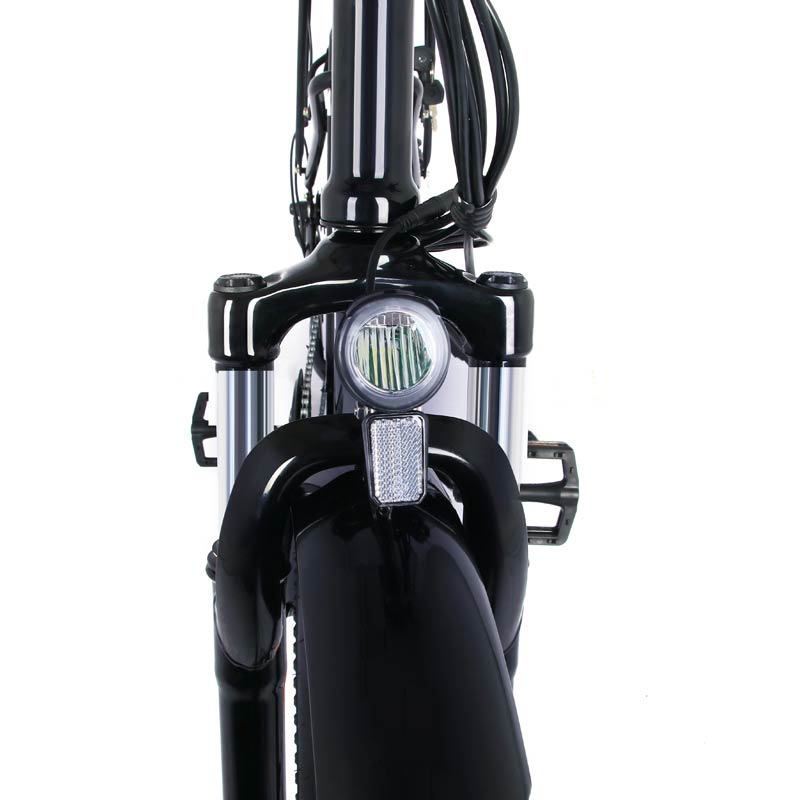

Front Lighting:	YES

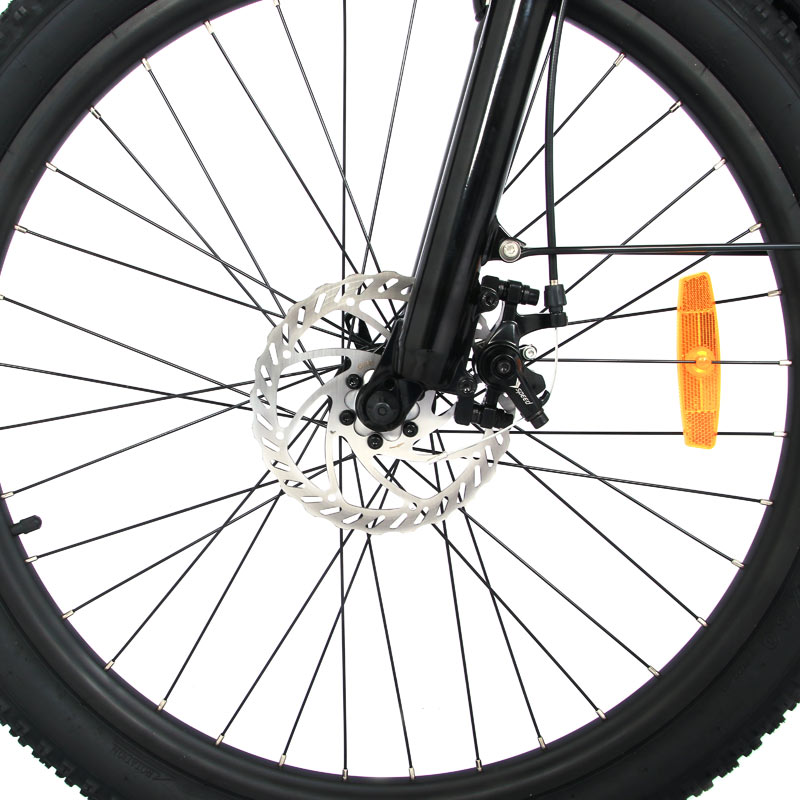

Braking Method:	Front disc brake + Rear disc brake
Tire Specifications:	Pneumatic tires
	Tire: 26×3.0
	Air Valve: 26×3.0, the inner tube valve is AV
Front Fork:	Shock absorbing front fork
Gear:	7 speed

Remarks:The factors, including battery power capacity, load, tire pressure,road conditions, chain and lubrication between wheel and axle, etc.will affect the maximum speed; the cruising distance indicated in this manual file is the
test result from the riding test conducted uninterrupted ly with load of 60kg(132lbs), at the speed of 15-25km/h (9.3-20mile/h for US), and on the flat and hardened road surface, from full charge to full power consumption.;Driving habits, temperature, load, tire pressure, road condition and other factors will affect the actual cruising distance.

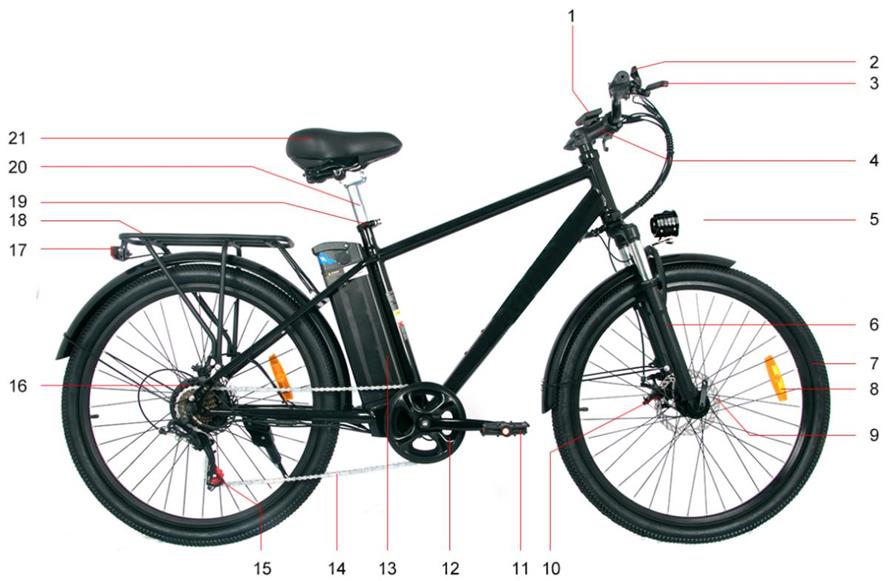

1.Display	2.Brake lever	3.Brake handle	4.Handlebar	5.Headlight
6.Front fork	7.Tire	8.Wheel reflector	9.Disc brake	10.Disc brake rotor
11.Pedal	12.Sprocket	13.Battery	14.Chain	15.Derailleur
16.Fly-whee	17.Taillight	18.Rear rack	19.Seat post	20.Seat tube
21.Saddle

City Commuter Electric Bike

This City Commuter Electric Bike is the ultimate urban transportation solution. With its sleek and modern design, it combines style and functionality for the modern city dweller. This urban city electric bike is equipped with a powerful motor that provides effortless assistance while pedaling, making it easy to conquer city streets and hills. Its long-lasting battery ensures you can commute to work or explore the city without worrying about running out of power. The comfortable saddle and ergonomic handlebars provide a smooth and enjoyable ride, and the bike's sturdy frame ensures stability and safety. Whether you're commuting to work or simply exploring the city, the City Commuter Electric Bike offers a convenient and eco-friendly way to get around.

Ladies Electric City Bike

This Ladies Electric City Bike is designed with the specific needs of female riders in mind. This elegant and practical electric bike offers a comfortable and stylish way to navigate city streets. With a step-through frame, it's easy to mount and dismount, making it perfect for women of all ages. The bike features a powerful electric motor that provides smooth and reliable assistance, allowing you to effortlessly tackle city commutes or leisurely rides. The Ladies Electric City Bike also includes practical features like a built-in basket or rack for carrying groceries or personal items, ensuring convenience and functionality. With its comfortable saddle and easy-to-reach handlebars, this ladies electric town bike is not only functional but also comfortable for long rides. Whether you're running errands or enjoying a scenic ride, the Ladies Electric City Bike is a perfect companion for any urban adventure.
